HDMI to Audio HDMI Optical SPDIF converter 5.1 amplifier dts

FOB Reference Price:Get Latest Price
$8.50 - $13.00 / Piece | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 14 Negotiable
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)
$8.50 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Quick Details
Brand Name:
Model Number:
Place of Origin:
Guangdong, China
HDMI resolution:
HDMI to HDMI audio conveter
Max bandwidth:
HDMI, RCA, L/R, Toslink
0.5~1.5Volts p-p(TTL)
Max band rate:
video color format:
24bit deep color 30bit,36bit
High bandwidth:
Audio output:
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month hdmi to hdmi audio converter
Packaging & Delivery
Packaging Details
carton or color box of hdmi to hdmi audio converter.
Yantian, Shekou, Hongkong
Lead Time :
Quantity(Pieces) 1 - 5000 >5000
Est. Time(days) 14 To be negotiated

HDMI to Audio HDMI Optical SPDIF converter 5.1 amplifier dts



Product Description

This Mini HDMI to HDMI+Audio Converter is a device use for seperating a 3.5mm stereo audio output from HDMI signal come with a HDMI singal output also.

When we enjoy high-definition visual experience, while also want to enjoy the stunning stereo system, this product is the best choice. This product has small, white appearance, simple installation, no external power supply etc.




HDMI resolution


Support video color format

24bit deep color 30bit,36bit

Audio output


Max bandwidth


Max band rate


Input/Output TMDS signal

0.5~1.5Volts p-p(TTL)

Input/Output DDC signal

5Volts p-p(TTL)

Input cable length

15m AWG26 HDMI standard cable

Output cable length

20m AWG26 HDMI standard cable

Max working current.


Power adapter voltage and current

Input:AC(50/60Hz) 100V-240V;Output: DC5V/1A

Operating Temperature range

(-15 to +55℃)

Operating Humidity range

5 to 90% RH(No Condensation)






Feature :
This HDMI Audio Extractor has one HDMI input, one HDMI output, one optical SPDIF output and RCA L / R stereo audio output. It features three audio EDID settings for the best flexibility.

HDMI 2CH PCM stereo audio can be converted to 2CH analog stereo and output through RCA L/R and SPDIF at the same time.

Set EDID to "5.1CH" / DTS 5.1CH for SPDIF out; The RCA L/R output will not have sound if incoming audio is multi-channel audio (>2CH). SPDIF does NOT support 5.1 or 7.1 Digital Plus. For Chromecast & Roku, if they send 5.1 Digital Plus in HDMI signal, the audio will not be extracted and SPDIF will not have signal.

The HDMI output has identical video and audio signals as the HDMI input. HDMI supports all audio formats including Digital Plus, 5.1CH/7.1CH PCM and HD Audio (including TrueHD and DTS-HD Master Audio). For 5.1CH PCM or above, set EDID to "pass", and connect output to AV receiver directly. Does not support ARC.

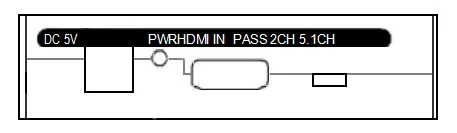

DC5V: 5V DC Power input Interface

PWR: Power led Status Light

HDMI IN: HDMI input interface

SWITCH: Audio mode switch

PASS: HDMI pass mode.The audio and video output from the HDMI output SPDIF and L/R no output.

2CH: 2 channel stereo mode. The HDMI/SPDIF and L/R output stereo audio.

5.1CH: 5.1 channel mode. The HDMI/SPDIF output 5.1 channel audio, L/R no output.





HDMI OUT: HDMI output interface

GREEN LED: HDMI output led status light

SPDIF: SPDIF optical Output

L/R: Analog Sound Left and right channel output


















































High quality HDMI Audio Extractor Digital To Analog Converter


Package Content

1 x Main unit(HDMI TO HDMI AUDIO Converter)

1 x User Manual
1 x Power cable
